Built to order

SRG Series

Ground-Adjustable Pitch · 16" – 80"

Ground Adjustable

One propeller. Every mission profile.

Ground-adjustable pitch propellers — set the blade angle on the ground, lock it, and fly a fixed-pitch prop optimized for the day's mission. Flexible on the ground, precise in the air.

Blade-angle adjustment at the hub — optimize per mission, no re-prop
One propeller covers varying payload and altitude profiles
Carbon blades on a precision metal ground-adjust hub

Every SRG unit is specced against your platform and built to order. Send us the mission and we quote the exact configuration.

Pricing

Quote only

Range: 16" – 80"

Explore all platforms

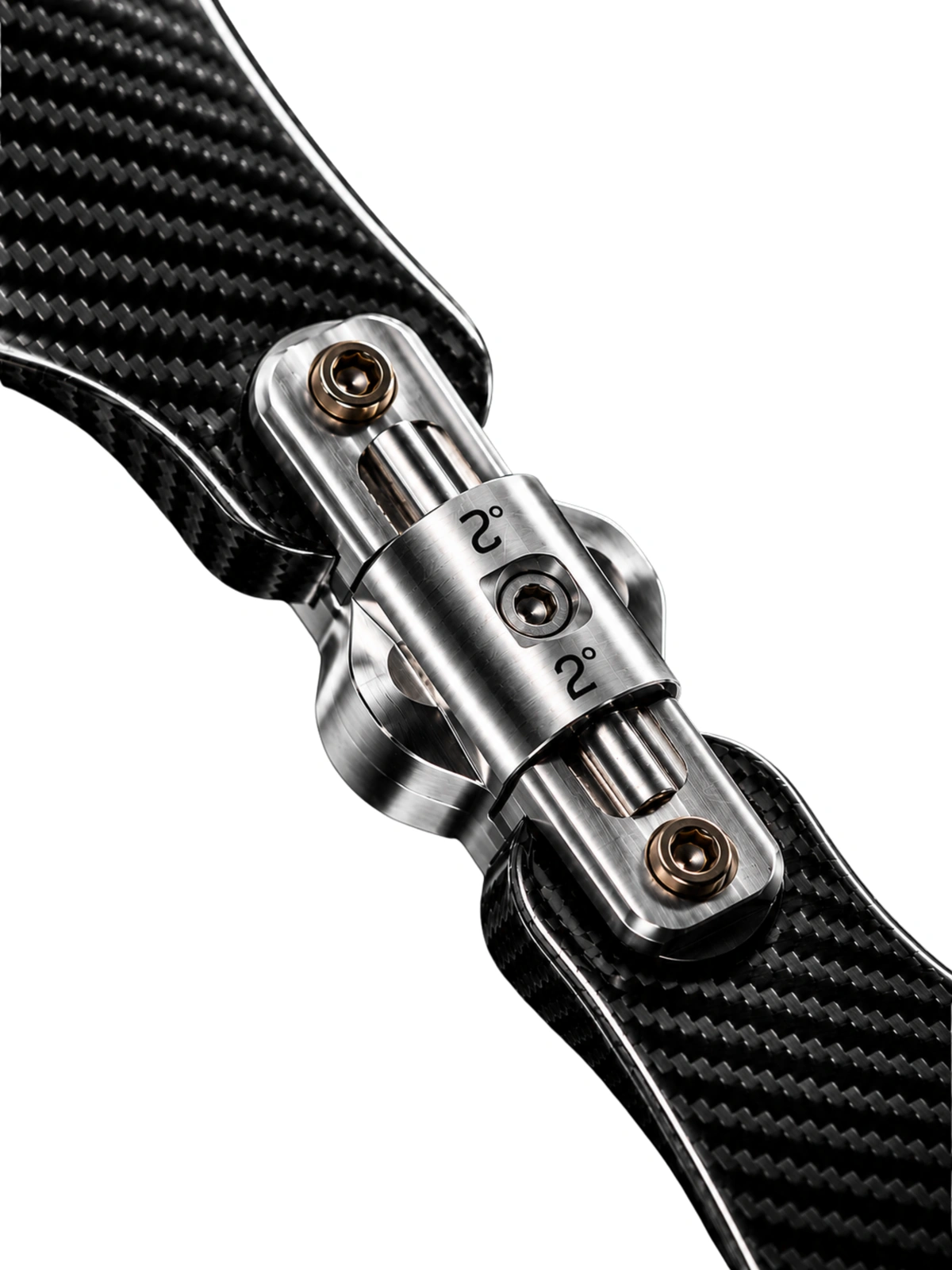

Macro of the SRG hub showing the machined degree scale for blade angle adjustment

The mechanism

Set the pitch on the ground. Lock it. Fly.

1. Loosen the hub clamp

The precision metal hub opens with standard tools in the field. No disassembly of the powertrain.

2. Set the blade angle

Each blade root carries a machined degree scale. Dial both blades to the same mark for the day's payload and altitude.

3. Torque and fly

Lock the clamp to spec and fly a true fixed-pitch propeller. Optimized on the ground, precise in the air.

Size lineup

Four base diameters, specced to your platform

18" diameter

SRG 18

Fleet UAVs and mapping platforms

2-blade · pitch ground-adjustable at the hub

24" diameter

SRG 24

Industrial multirotors

2-blade · pitch ground-adjustable at the hub

32" diameter

SRG 32

Heavy-lift and logistics

2-blade · pitch ground-adjustable at the hub

40" diameter

SRG 40

Large VTOL and tactical UAVs

2-blade · pitch ground-adjustable at the hub

Intermediate and larger diameters up to 80" are available as custom builds.

In detail

Carbon fiber blade meeting the silver ground-adjustable hub

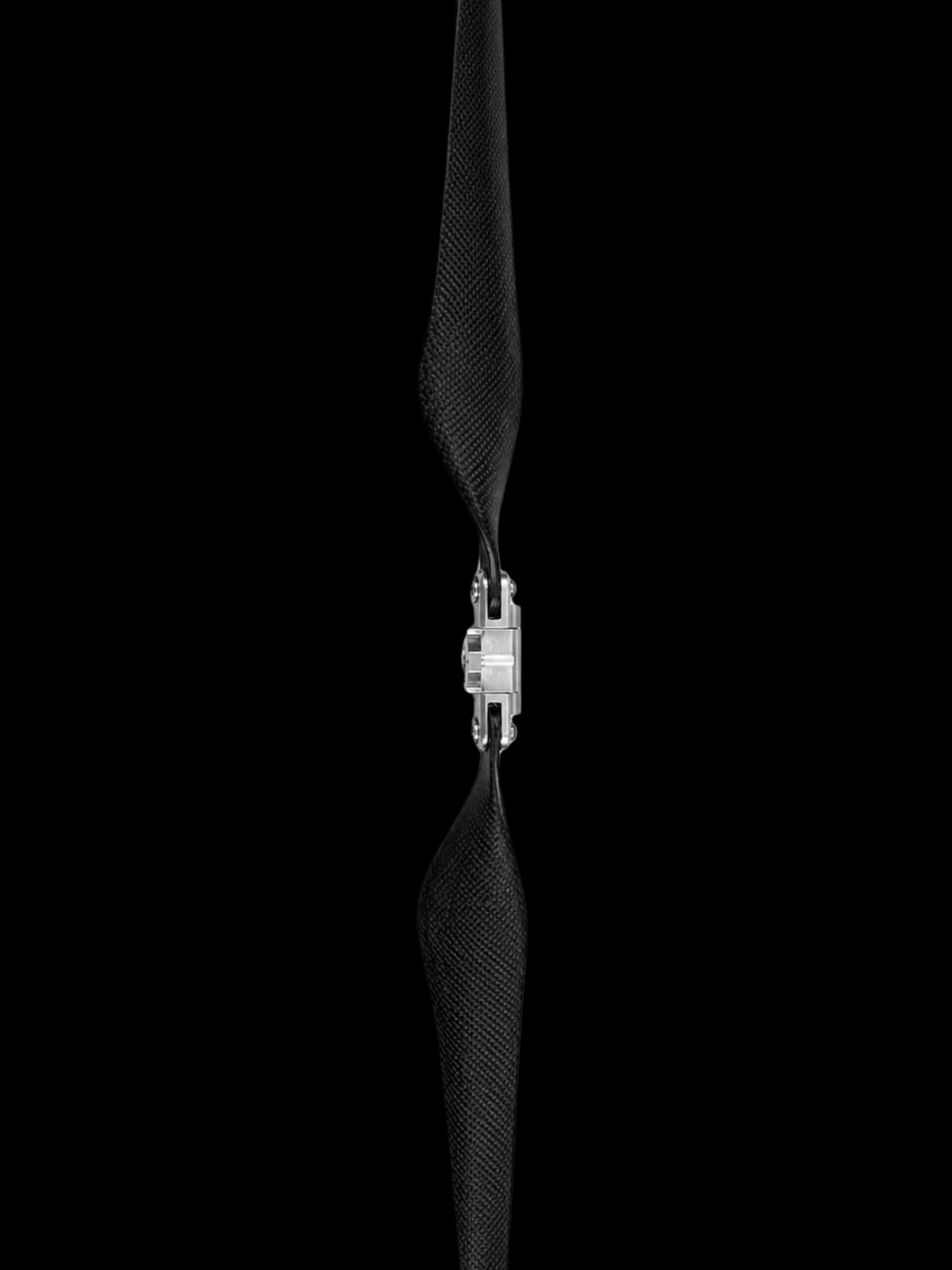

Full span of an SRG ground-adjustable propeller

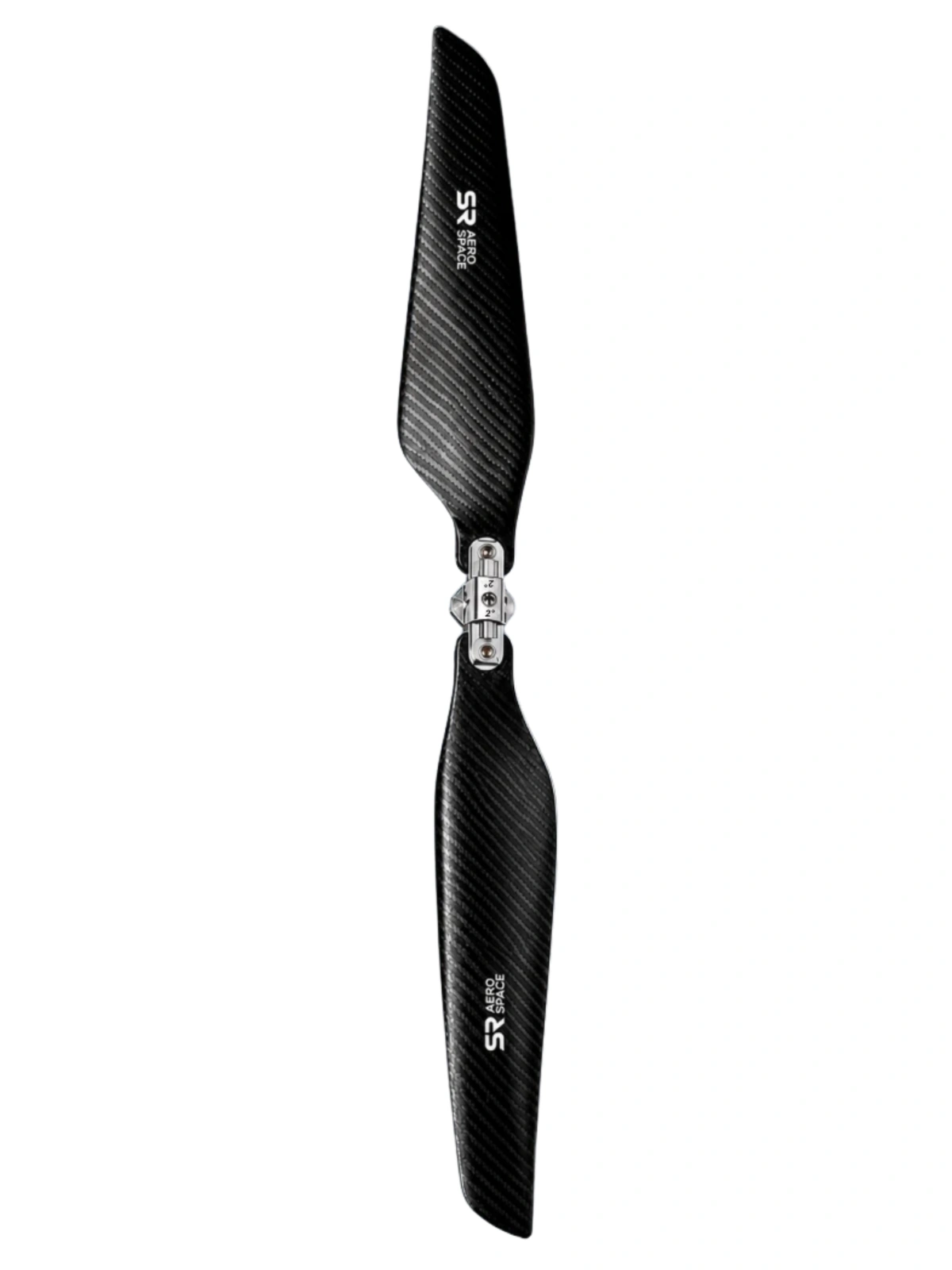

SRG propeller with adjustable hub, studio view
